SA5E SA6E SA8E Rod End Bearing Self Alignment Rod Ends Ball Joint Flexible

Brand Name : SXEGL

Model Number : SA-E

Certification : CE/FCC/EPA/ROSH/ISO

Place of Origin : China

MOQ : 1

Packaging Details : Carton

Delivery Time : Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.

Payment Terms : Visa /Mastercard/PayPal/Apple Pay/Google Pay

Supply Ability : All products have passed CE certification and comply with EU RoHS environmental standards

Price : $0.5-$11

Product name : Rod End Bearing

Material : S55C

Applicable industries : mechanical

performance : Long life Large carrying capacity Corrosion resistance

Color : silver, black

length : Customized

Nut type : Single Nut$ Double Nut

Structure : CNC Components

core components : Engine, Bearing, motor, Pressure vessel

Contact Now

SA5E SA6E SA8E Rod End Bearing Self Alignment Rod Ends Ball Joint Flexible

SEXGL rod end bearings: mechanical parts with unique structure and excellent performance, widely used in many fields due to their high adaptability and reliability.

Self-aligning function: can be tilted within a certain angle range, and can still work normally when the support shaft and the shaft housing hole are not concentric. It can effectively compensate for installation errors and bending deformation of the shaft to ensure stable operation of the mechanical system. For example, in the automobile suspension system, it can adapt to the position changes of the shaft caused by uneven road surface.
Flexible multi-directional movement: can realize multi-axis and multi-angle free rotation to meet the movement requirements of the mechanical system in different directions. Suitable for occasions requiring complex motion trajectories, such as robot joints.

Company advantages

OEM factory, high quality, precision processing, assembly line assembly, 100% quality control process, sufficient inventory, fast and safe transportation.

SA5E SA6E SA8E Rod End Bearing Self Alignment Rod Ends Ball Joint Flexible

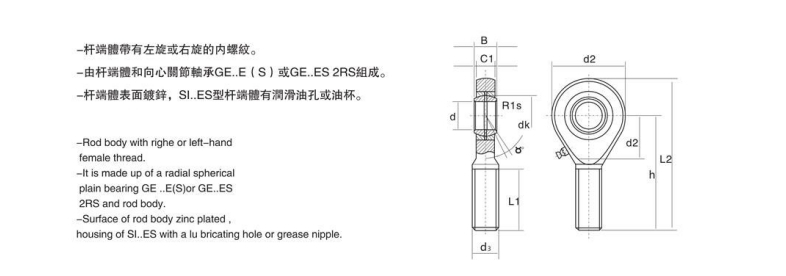

Type
mm
(Dimensions)
Load ratings
kg
Weight
d d3
6H		 B C1 L1
min		 d2 h L2 dk R1s α
≈		 dyn.c stat.co
SA5E* 5 M5*0.8 6 45 16 21 36 465 10 3 13 340 81 11
SA6E* 6 M6*1.0 6 4.4 18 21 36 46.5 10 0.3 13 3.40 8.15 0.017
SA8E* 8 M8*1.25 8 6 22 24 42 54 13 0.3 15 5.50 12.9 0.029
SA10E* 10 M10*1.5 9 7 26 29 48 62.5 16 0.3 12 8.15 17.6 0.051
SA12E* 12 M12*1.75 10 8 28 34 54 71 18 0.3 11 10.8 24.5 0.086
SA15ES 15 M14*2.0 12 10 34 40 63 83 22 0.3 8 17.0 36.0 0.140
SA17ES 17 M16*2.0 14 11 36 46 69 92 25 0.3 10 21.2 45.0 0.190
SA20ES 20 M20*1.5 16 13 43 53 78 104.5 29 0.6 9 30.0 60.0 0.310
SA25ES 25 M24*2.0 20 17 53 64 94 126 35.5 0.6 7 48.0 83.0 0.560
SA30ES 30 M30*2.0 22 19 65 73 110 146.5 40.7 0.6 6 62.0 110 0.890
SA35ES 35 M36*3.0 25 21 82 82 140 181 47 0.6 6 80.0 146 1.40
SA40ES 40 M39*3.0 28 23 86 92 150 196 53 0.6 7 100 180 1.80
SA45ES 45 M42*3.0 32 27 94 102 163 214 60 0.6 7 127 240 2.60
SA50ES 50 M45*3.0 35 30 107 112 185 241 66 0.6 6 156 290 3.40
SA60ES 60 M52*3.0 44 38 115 135 210 277.5 80 1.0 6 245 450 5.90
SA70ES 70 M56*4.0 49 42 125 160 235 315 92 1.0 6 315 610 8.20
SAI80ES 80 M64*4.0 55 47 140 180 270 360 105 1.0 6 400 750 12.0
