15mm 63mm Linear Guide Rail Stainless Steel Mini Linear Guide Micron Accurate

Brand Name : SXEGL

Model Number : MGN/MGW7/9/12/15/C/H

Certification : CE/FCC/EPA/ROSH/ISO

Place of Origin : China

MOQ : 1

Packaging Details : Carton

Delivery Time : Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.

Payment Terms : Visa /Mastercard/PayPal/Apple Pay/Google Pay

Supply Ability : All products have passed CE certification and comply with EU RoHS environmental standards

Price : $6.9-$89

Product Name : Linear Guide Rail

Width Of Guide Rail : 15-63mm

CombiWidth Of Height : 15-65mm

Type : Linear Rolling Guide

Material : Stainless Steel

Slide Rail Height : 15-53mm

Contact Now

Space Saving Micron Accurate Mini Linear Guide Rails Vacuum Compatible

SEXGL Linear Guide Rails deliver unparalleled accuracy and durability in high-precision automation systems, trusted by global leaders like BYD (EV powertrain assembly) and BOE (LCD panel cutting robots) across North America, Europe, Southeast Asia, and South Korea.The GMN series features an ingenious design with dual-row Gothic-arch raceway structures and 45° contact angles, achieving compact dimensions, lightweight construction, and minimal friction resistance. This linear system delivers equal load capacity across all four directions while ensuring exceptionally smooth motion and reduced noise levels. These performance advantages make the GMN series particularly well-suited for compact machinery applications requiring space-efficient solutions with reliable multidirectional loading capabilities.

Key Characteristics

  1. Miniaturized Design

  2. High Load-to-Size Ratio

  3. Sub-Micron PrecisionSelf-Cleaning Mechanism

  4. Low-Inertia Motion

Details

15mm 63mm Linear Guide Rail Stainless Steel Mini Linear Guide Micron Accurate

15mm 63mm Linear Guide Rail Stainless Steel Mini Linear Guide Micron Accurate

15mm 63mm Linear Guide Rail Stainless Steel Mini Linear Guide Micron Accurate

15mm 63mm Linear Guide Rail Stainless Steel Mini Linear Guide Micron Accurate

15mm 63mm Linear Guide Rail Stainless Steel Mini Linear Guide Micron Accurate

Type Component size

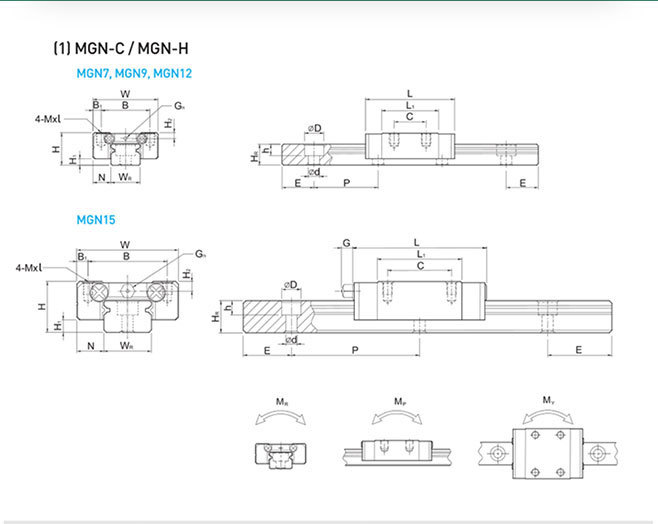

[mm]		 Slide size[mml Rail size(mml Guide rail fixing bolt dimensions
H H₁ N W B B₁ C L L G G. Mxl H₂ WR HR D h d P E (mm)
MGN 7C 8 1.5 5 17 12 2.5 8

13		 13.5 22.5
1.2 M2x2.5 1.5 7 4.8 4.2 2.3 2.4 15 5 M2×6
MGN7H 21.8 30.8
MGN9C 10 2 5.5 20 15 2.5 10
16		 18,9

29,9		 28.9

39.9
1.2 M3×3 1.8 9 6.5 6 3.5 3.5 202 7.5 M3×8
MGN9H
MGN 12C 13 3 7.5 27 20 3.5 15
20		 217 34.7

45.4
1.4 M3×3.5 2.5 12 8 6 4.5 3.5 25 10 M3x8
MGN 12H 324
MGN 15C 16 4 8.5 32 25 3.5 20

25		 26,7

43.4		 42.1
58.8		 4.5 M3 M3×4 3 15 10 6 4.5 3.5 40 15 M3x10
MGN 15H

15mm 63mm Linear Guide Rail Stainless Steel Mini Linear Guide Micron Accurate

Type Component size

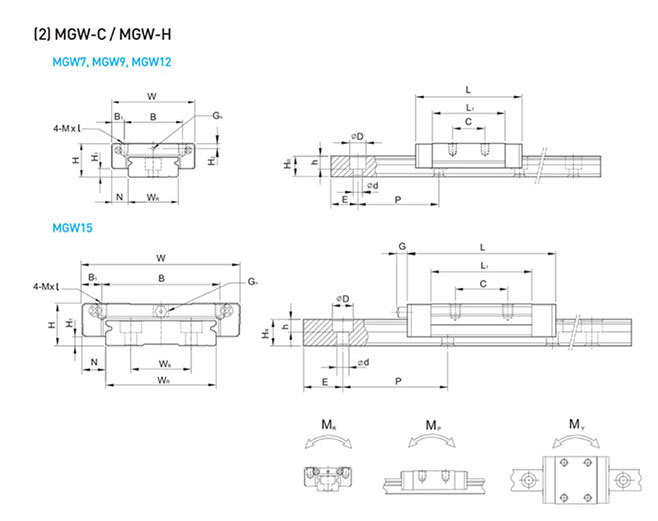

( mm)		 Slide size(mm) Rail size(mm) Guide rail fixing bolt dimensions
H H₁ N W B B₁ C L L G G. Mxl H₂ WR W H₈ D h d P E 〔mm〕
MGW7C 9 1.9 5.5 25 19 3 10

19		 21 31.2
1.2 M3×3 1.85 14
5.2 6 3.2 3.5 30 10 M3×6
MGW7H 30.8 41
MGW9C 12 2.9 6 30 2
23		 45 12 275 39.3
1.4 M3×3 2.4 18
7 6 4.5 3.5 30 10 M3x8
MGW9H 35 24 385 50.7
MGW 12C 14 3.4 8 40 28 6 15

28		 313 46.1
1.4 M3×3.6 2.8 24 · 8.5 8 4.5 4.5 40 15 M4×8
MGW12H 45.6 60.4
MGW 15C 16 3.4 9 60 45 7.5 20

35		 3857 54.8

73.8		 5.2 M3 M4x4.2 3.2 42 23 9.5 8 4.5 4.5 40 15 M4x10
MGW 15H
